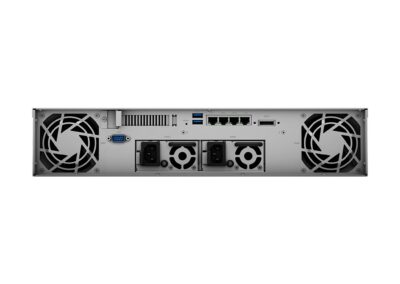

Synology RackStation RS1221+ - NAS server

Synology RackStation RS1221+ - NAS server - 8 bays - rack-mountable - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, JBOD - RAM 4 GB - Gigabit Ethernet - iSCSI support - 2U

• Primary Information

  Product Description:	Synology RackStation RS1221+ - NAS server
  Device Type:	NAS server
  Host Connectivity:	Gigabit Ethernet
  Enclosure Type:	Rack-mountable - 2U
  Max Supported Capacity:	108 TB
  Installed Devices / Modules Qty:	0 (installed) / 8 (max)
  Dimensions (WxDxH):	19 in x 12.1 in x 3.5 in
  Weight:	15.21 lbs ()
  Processor:	1 x Ryzen Embedded V1500B 2.2 GHz (Quad-Core)
  Storage Controller:	RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD
  Networking:	10Mb LAN, 100Mb LAN, 1GbE
  IP Cameras Supported:	40
  RAM:	4 GB
  Power:	AC 120/230 V (50/60 Hz)
  System Requirements:	Microsoft Windows 7 or later, Apple macOS 10.12 or later

• General

  Device Type:	NAS server
  Host Connectivity:	Gigabit Ethernet
  Enclosure Type:	Rack-mountable - 2U
  Total Storage Capacity:	0 GB
  Max Supported Capacity:	108 TB
  Installed Devices / Modules Qty:	0 (installed) / 8 (max)
  Width:	19 in
  Depth:	12.1 in
  Height:	3.5 in
  Weight:	15.21 lbs ()

• Processor / Memory

  Processors Installed:	1 x Ryzen Embedded V1500B 2.2 GHz
  Number of Cores:	Quad-Core
  Max Supported Qty:	1
  RAM:	4 GB (installed) / 32 GB (supported) - DDR4
  Features:	ECC

• Storage Controller

  Type:	RAID
  Interface Type:	SATA 6Gb/s
  RAID Level:	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD

• Networking

  Data Link Protocol:	10Mb LAN, 100Mb LAN, 1GbE
  Network / Transport Protocol:	PPTP, L2TP, iSCSI, FTP, SMB, NFS, HTTP, HTTPs, SMB v2, Telnet, SMB v3
  Remote Management Protocol:	SNMP, Telnet, SSH
  Network Services Compatibility:	Microsoft Active Directory (AD), Microsoft CIFS, FTP, Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1)
  Features:	Firewall protection, LDAP support, wake on LAN (WOL), Syslog support, antivirus analysis, High Availability, video server, POP3 e-mail server, Access Control List (ACL) support, RADIUS support, FTP server, e-mail server, reset button, surveillance station, DNS server, VPN Server, Link Aggregation, scheduler, failover protection, B-tree file system (Btrfs), network virtualization (NV), file station, EXT4 file system, SSD trim, RAID migration, MailPlus server, hybrid backup sync
  Encryption Algorithm:	AES, SSL, TLS

• Security DVR

  IP Cameras Supported:

  40

• Expansion / Connectivity

  Expansion Bays:	8 (total) / 8 (free) x hot-swap - 2.5" / 3.5"
  Expansion Slots:	1 (total) / 1 (free) x PCI Express 3.0 x8 ¦ 1 (total) / 1 (free) x expansion slot
  Interfaces:	4 x Ethernet 1000Base-T - RJ-45 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x eSATA

• Miscellaneous

  Features:	Built-in 2 cooling fans, 80mm cooling fan
  Compliant Standards:	VCCI, BSMI, CCC, FCC, AES, RoHS, KC, EAC, RCM

• Power

  Power Device:	Internal power supply
  Voltage Required:	AC 120/230 V (50/60 Hz)

• Software / System Requirements

  OS Required:

  Microsoft Windows 7 or later, Apple macOS 10.12 or later

• Manufacturer Warranty

  Service & Support:

  Limited warranty - 5 years
