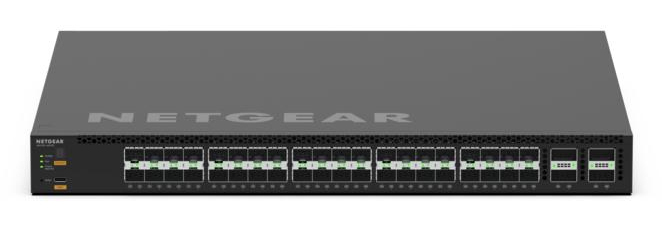

NETGEAR XSM4344FC M4350‑40F4C 40‑Port 10G SFP+ Managed Switch with 100G
NETGEAR XSM4344FC, Managed, L3, Rack mounting, 1U
Additional information
| Weight | 24 lbs |
|---|---|
| Dimensions | 24 × 23 × 6 in |
| Switch type | Managed |
| Installed SFP+ modules quantity | 40 |
| 10G support | Yes |
| Switching capacity | 1600 Gbit/s |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Memory type | DDR4-SDRAM |
| Power source | AC |
| Power over Ethernet (PoE) | No |
| Heat dissipation | 728.21 BTU/h |
| Width | 440 mm |
| Cables included | AC, USB |
| Switch layer | L3 |
| Fiber ports quantity | 44 |
| Jumbo frames support | Yes |
| IGMP proxy | Yes |
| Stackable | Yes |
| Internal memory | 4000 MB |
| Power supply included | Yes |
| Depth | 400 mm |
| Manual | Yes |
| Fiber optic connector | QSFP28, SFP+ |
| Form factor | 1U |
| Noise level | 69.5 dB |
| Power consumption (max) | 213.6 W |
| Height | 43.2 mm |
| Rack mount kit | Yes |
| Console port | USB |
| Product colour | Black |
| Weight | 7.38 kg |
| QSFP28 ports quantity | 4 |
| Brand |
$7,999.95
NETGEAR XSM4344FC M4350‑40F4C 40‑Port 10G SFP+ Managed Switch with 100G Uplinks
The NETGEAR XSM4344FC (M4350‑40F4C) is a fully managed Layer 3 switch built for high‑bandwidth AV over IP, broadcast, and enterprise core or aggregation networks. Featuring 40 × 10G SFP+ ports and 4 × 100G QSFP28 uplinks, this switch delivers the performance, scalability, and reliability required for mission‑critical deployments.
Designed as part of NETGEAR’s AV Line M4350 Series, the XSM4344FC combines 1.6 Tbps switching capacity, advanced multicast support, and simplified AV‑focused management—making it ideal for large Pro AV systems, media production environments, and high‑density enterprise networks.
High‑Density 10G Access with 100G Core Connectivity
With 40 SFP+ 10‑Gigabit ports, the XSM4344FC provides massive fiber connectivity for endpoints, servers, and AV devices. The four 100G QSFP28 uplinks enable ultra‑fast aggregation or core switching, ensuring smooth performance in data‑intensive and latency‑sensitive environments.
Optimized for AV over IP and Broadcast Workflows
The M4350‑40F4C is certified for AV over IP and includes NETGEAR IGMP Plus™, allowing multicast traffic to work out of the box with minimal configuration. The dedicated NETGEAR AV OS™ and Engage Controller offer preconfigured profiles for major AV protocols, dramatically reducing setup time for professional AV installations.
Supported workflows include Dante, AES67, Q‑SYS, NDI, NVX, SDVoE, and SMPTE ST 2110, making this switch a trusted platform for modern IP media networks.
Enterprise‑Grade Reliability and Layer 3 Features
Built for nonstop operation, the XSM4344FC supports Virtual Chassis stacking, non‑stop forwarding (NSF), and hitless failover. Its advanced Layer 3 feature set supports static and dynamic routing, while redundant power supply support helps ensure maximum uptime in critical deployments.
Quiet, Rack‑Ready Design
Ideal for studios and control rooms, the switch features intelligent fan control with Quiet Mode, minimizing noise without compromising cooling. A 1U rack‑mount chassis and included mounting hardware make installation fast and flexible in standard AV or enterprise racks.
Key Features
- 40 × 10G SFP+ fiber ports
- 4 × 100G QSFP28 uplink ports
- 1.6 Tbps switching capacity
- Fully managed Layer 3 switch
- Certified for AV over IP
- NETGEAR IGMP Plus™ multicast support
- NETGEAR AV OS™ & Engage Controller
- Virtual Chassis stacking with NSF
- SMPTE ST 2110 & AES67 support
- Quiet Mode intelligent cooling
- 1U rack‑mountable design
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
Ideal Use Cases
- AV over IP and broadcast systems
- Enterprise core or aggregation switching
- Media production and live event networks
- Data‑intensive commercial environments
- Scalable campus and corporate networks
