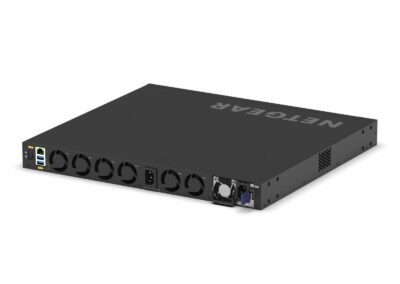

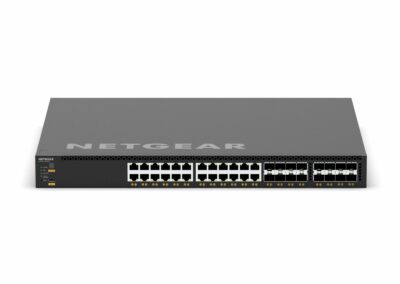

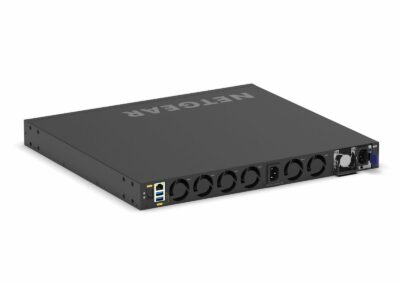

NETGEAR XSM4340V M4350-24X8F8V Fully Managed 10 Gig PoE++ Switch
Additional information
| Weight | 24 lbs |
|---|---|
| Dimensions | 24 × 24 × 4 in |
| Total Ports | |
| UPC | 606449165135 |
| Switch Mounting | |
| Management Type | |
| Supported Speeds | |
| Predominant Port Type | |
| Power over Ethernet | |
| Brand | |
| Warranty | Lifetime |
| Num of PoE Ports | 24 |
$5,999.95
M4350-24X8F8V Fully Managed Switch (XSM4340V)
24x10G/Multi-Gig PoE++ (290W base, up to 1,770W), 8xSFP+ and 8xSFP28 25G Managed Switch
- 24 10G/Multi-Gig PoE++ ports, 8 10GBASE-X SFP+ and 8 25GBASE-X SFP28 ports
- 750W internal power supply providing 290W of PoE budget
- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
- The PoE budget can reach 1,770W, when the redundant PoE budget remains 290W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
- NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
- Lifetime Next Business Day Hardware Replacement
- TAA compliant SKU is available. Contact Us
WHAT’S INCLUDED
-
M4350-24X8F8V (XSM4340V)
-
Power cord(s)
-
Console USB Type-C cable
-
Rack-mounting standard bracket set
-
Set of longer brackets for recessed mounting
-
Rubber footpads for tabletop installation
-
Installation guide
WARRANTY
This product is backed by a NETGEAR ProSAFE Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
TECHNICAL DETAILS
-
Width: 440mm
-
Depth: 400mm
-
Height: 43.2mm
-
Weight: 7.24kg (15.96lb)
-
Primary Port Speed: 10 Gigabit / Multi-Gig
-
Number of Ports: 40 (24x 10G/Multi-Gig PoE++, 8 x 10G SFP+, 8 x 25G SFP28)
-
PoE Ports / Budget: 24 PoE++ (90W/port), 290W Base, up to 1,770W Budget
-
IGMP Support: Enhanced (NETGEAR IGMP Plus™)
-
Jumbo Frame Support: Yes, up to 12kb
-
AVB Support: Yes, included
-
Acoustics: Quiet Mode 32.6dB@25ºC
-
Power Consumption: With PoE: 464W/1582.24Btu/hr, Without PoE: 151.8W/476.65Btu/hr, Standby without any port connection: 53.4W/167.68Btu/hr
-
PSU Compatible Models
-
APS600Wv3
-
APS1200Wv2
-
APS2000Wv2
-
